Time Synchronization in Electrical Systems



Precise Time Synchronization for Substation Automation purposes.

Time Synchronization in Power Plants

What is time synchronization and how does it work? Which solutions exist for power transmission and distribution systems? What is precision, accuracy and resolution and why should manufacturers and operators of equipment for electrical distribution networks care about these terms? This document has been created to answer these questions and offers you a comprehensive and easy-to-understand introduction. Read on ...


Time Synchronization Overview


Substation automation demands precise time synchronization for a variety of Intelligent Electronic Devices (IEDs). There are different possible approaches to achieve the required accuracy. Time synchronization for substations with integrated protection- and system control functions, as well as data collection require a target architecture that distributes synchronized time in several ways. Different solutions are possible and can be realized using MEINBERG timing equipment.

Electrical companies are turning into the biggest users and generators of
  • Operational Data
  • Administrative Data
They are the biggest users
  • of real time data
  • Operational data
Application of time synchronization in electrical systems Time Synchronization in:
  • SCADAs ->  Protocolization and registration
  • Communication equipment ->  Communication processors, protocol translators
  • Protection relays ->  Fault and performance analysis
  • Faultrecorders ->  Post mortem analysis, responsability, liability
  • Billingmeters AMR ->  Tarifswitching, load analysis
  • IEDs, RTUs, SOE, Sensors ->  Protocolization + registration
  • Servers, Routers, Switches ->  IT security!
  • Frequency deviation ->  Systemstability
  • Security monitoring ->  Physical security
  • Digital voice and video recording ->  Civil responsability, Law, Insurance companies


Synchronization of Equipment

Direct Synchronization

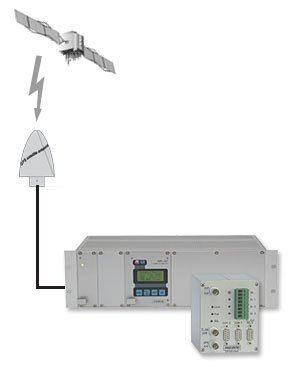

GPS Antenna Dedicated Clocks GPS167 rack and GPS163TD mounting rail for time synchronization
Right Arrow Resolution and precision:
  • 1 ms for events and faults in substation synchronization
  • PPS (Pulse per second as a hardware Gong)
  • 1 kPPs with 250 ns precision for sinchrophasor relays
    (Resolution of+/-5 µs)
Electrical/
Optical
Prot. Siemens ® Right Arrow
S/S equipment
Control
Protection
Billing metering
SOE and fault recording
Frequency deviation
Δf, ΔT
ABB
Codes IRIG AB
Afnor
DCF
Pulses PPS-PPM
1 kPPS
PPH


Syncronization over LAN


Resolution and Precision:
  • Depends on traffic on the network
  • Depends on distance and communication media
  • Range from submiliseconds to 5 -20 ms

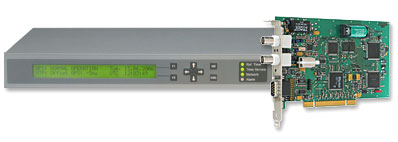

Lantime NTP time server series M300, M600 and GPS170PCI GPS PCI-X slotcard
Right Arrow
SCADAs
Communications
processors
LANs S/E
Right Arrow Protocols
DNP 3.0
IEC 60870-x
IEC 61850  NEW!
IEEE 1588-2002
UCA 2 (MMS) *
Other

* UCA2 (Utility Communication Architecture) with MMS protocol(Manufacturing Message Specification)

Synchronization over LAN

  • External networks are gaining more significance in control and protection environments through:
    • LAN, WAN, MAN
    • Redundant LANs
    • Switches, routers, firewalls
    • Severs and clients
    • Communication over Internet and Intranets
    • Different medias
  • Transmission of secure data on insecure channel:
    • Confidenciality
    • Integrity
    • Authentication
  • Tools:
    • Encrypted tunnels
    • VPN


Synchronization Equipment from Meinberg

  • Clocks for SCADAs, RTUs, PLCs, relays, automation
    • PPH, PPM, PPS
    • Optical outputs
    • DCF, IRIG A/B Codes, etc.
    • Proprietary codes: SIEMENS, ABB, ION etc.
    • Frequencies/Amplitudes: Fixed and variable
    • Frequency measurement
    • PCI cards
    • Special signals and interfaces
    • Slave clocks
    • Wide AC and DC power supply ranges
    • Mounting on 19" Rack, DIN rail
    • Antenna with cable up to 300 meters, optical available

Examples of Use


Time Synchronization with GPS Satelllite Clock and LAN-CPU in Modular Case


IRIG-B DC Serial Data String Ethernet Fiber Optic
Description
Time Synchronization with GPS170BGT and MEINBERG Time Code Diplexer via Fiber Optic,
Central Engine Room
Integrated
Bay Controller
Metering and Control Devices
NTP over Lan
NTP over Lan
Ethernet over Fiber Optic / Multimode
IRIG-B DC Fiber Optic / Multimode
ION Code (TX) Fiber Optic / Multimode
Time Code Diplexer
IRIG-B (DC)
3 circles with 8 relais
(e.g. General Electric) are possible
GPS170 BGT
with LAN-CPU
and GPS Antenna
IRIG-BC (DC)
More Protection Relais are possible
NTP over LAN
Bay Controller
(e.g. BC1703ACP)
Protocol over LAN
Digital Power Metering
(e.g. ION 8300 RS485)


Time Synchronization with customized GPS Satellite Timing System


GPS Antenna / Surge Protection


Cable 10m

Cable 40m
GPS170BGT
MSTS1 RS232 (<15m)
ANZ14
IRIG-B (twisted pair)
ASCII RS485 9600 bd (twisted pair)
SAT
isolated
RS232
PPM
(24VDC
external)
DCF Pulse
DCF Pulse
(24VDC external)
DCF Pulse
Digital Power Meter / e.g. ION 75502
(Industrial Ionisation Blower)
PPM
IRIG-B DC Serial Data String Pulse DC
1 MSTS = Meinberg Standard Time String
2 ION 7550 = ION Time String 9600 baud, RS485
Description:
Time Synchronization with customized GPS170BGT through different protocols (eg. RS485, RS232, DCF, IRIG-B, PPM )
Controller 1
Controller 2
Controller 3
Controller 4
Controller 5
Controller 6


Time Synchronization with GPS-Antenna Distributor GPSAV4


Description:
Time Synchronization with several GPS170BGT and antenna distribution over MEINBERG GPSAV4
IRIG-B DC Pulse DC Ethernet Serial Data String
GPS170BGT
LAN CPU
GPS Antenna

Coaxial Cable 20m
Surge Protector
Antenna Diplexer
GPSAV4
Coax. Cable
(5m)
NTP over LAN
2xIRIG-B Protection Relais (e.g. GE Multilin)
8 x IRIG-B
(e.g. ION1 8600)
8 x DCF
GPS170BGT (additional)
GPS170BGT (additional)



Time Synchronization Terms and Glossary

What is Accuracy?

Accuracy (Precision)
  • Commonly based on UTC
  • Micro or nanoseconds
  • Referenced against the PPS in the GPS system
  • always given by the clock
  • e.g. +/- 250ns or 100 ns to PPS
Accuracy

What is Resolution?

  • The smallest possible time difference
    between two event recordings(in S/S = 1ms)
  • Chronological correctness
  • always depends on the end device
  • internal sampling rate
  • Processor and bus speeds



  • t 1 = 15:05:26:374
  • t 2 = 15:05:26:375
  • t 3 = 15:05:26:376

Usual signals for time synchronization in electrical systems:

  • IRIG-B mod
  • IRIG-B unmod
  • PPS
  • DCF_MARK
  • SERIAL CODES

Each signal type has its own resolution

e.g. IRIG-B: The framerate is 1.0 second - but accuracies up to 1 μs can be achieved
  • B00x Resolution of 10 ms (dc level shift)
  • B12x Resolution of 1 ms (modulated 1kHz carrier)

Stability

A "free running clock" what does it mean?
  • Clock without external disciplining signal
  • Loss of GPS signal
  • GPS antenna or cable failure, damaged receptor
In the case of free running clock the oscillator maintains the accuracy with a certain precision for a certain time. Stability of a clock depends on the oscillator!! Oscillators of different qualities:
  • TCXO Temperature Controlled Oscillator
  • OCXO LQ-MQ-HQ Oven Controlled Oscillator
  • OCXO DHQ Double Oven Oscillator
  • Rubidium/ Cesium/ Other sources
Oscillator stability determines free running clock precision (without GPS).
  • Comparison in 1 day or 1 year time frames
  • The more stable an oscillator, the smaller the time deviaton of the free running system from UTC
Here you can find a comparison chart of our oscillators: Oscillators comparison
